Scripts, Debugging & Tracing in AMPL Studio



In AMPL studio we can include script file. Prominent among the unique advantages of AMPL studio are the debugging and tracing features.

Scripts

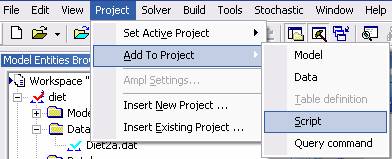

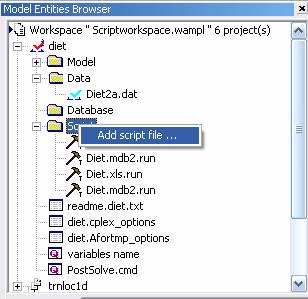

In Chapter 4, we have already seen the ways of running a script file.  A new script file can be added to a project by right clicking on the script folder of any project or by choosing to add script file to an active project from the Add to project submenu under project-menu.











To run a script file for the project, the script file (.sa or .run) file first needs to be opened in AMPL Studio and then by use of     it  can be run.



Debugging and Tracing: step by step walk through example



We illustrate the debugging feature by use of an example. We consider the example ‘stoch’ present under AmplStudio Modeling System 1.6.J\Examples\Script.

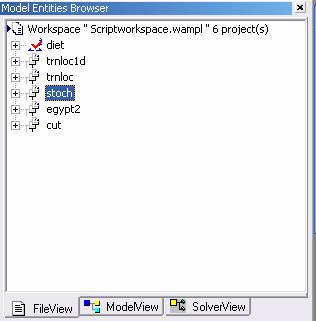

1.      We load the workspace Scriptworkspace.wampl and consider the project stoch.





2. We load the stoch.run file by double clicking on it.

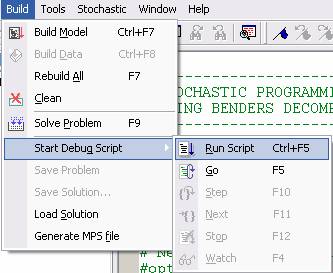

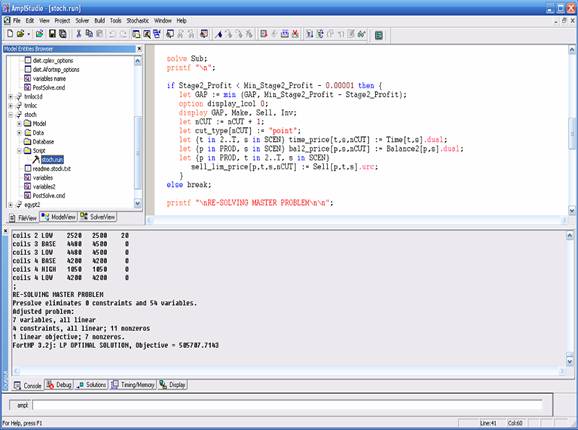

3.     The script file can be run in one go by using Start Debug Script -> Run script submenu under the Build menu or the  button on the script bar.

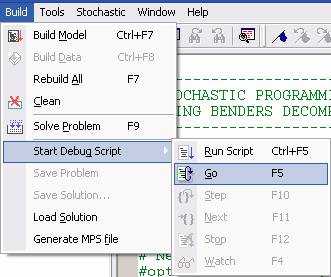

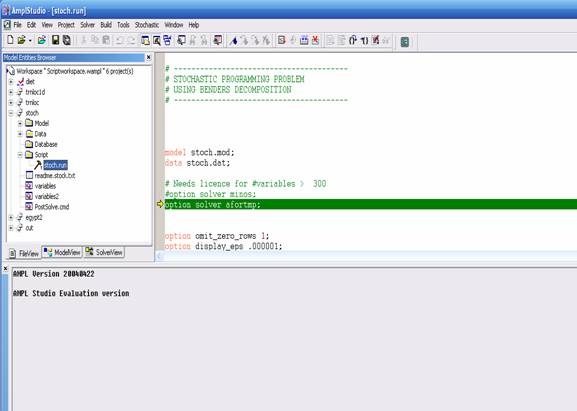

4.  To step through the script file use Start Debug Script -> Go submenu from the Build menu or the  button from the script bar.

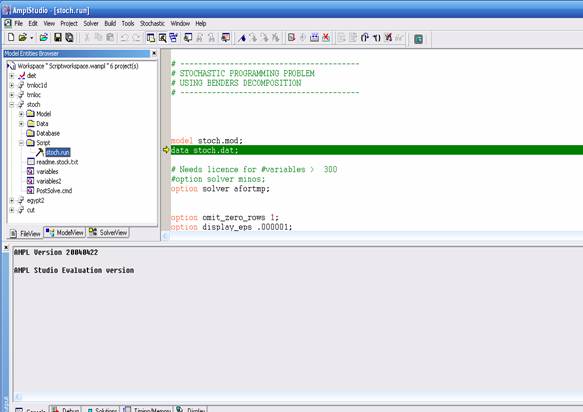

AMPL studio then steps through the script file.

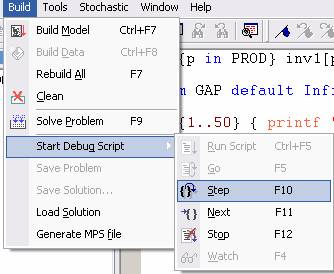

5.  When using step by step debugging feature (Step 4) to proceed a single step (analogous to AMPL’s step command) use Start Debug Script -> Step under Build menu or   button on script bar











AMPL studio then processes one step at a time.

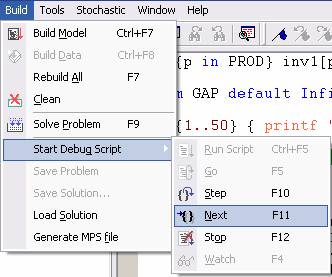

6.   To step past a compound statement (analogous to AMPL’s next command) rather than into it, use Start Debug Script ->Next under Build menu or use    button on the script bar.







AMPL studio then just steps past the compound statement (For loop in the screen shot)







7.   To see the value of any variables or parameter double click on the variable or parameter name in the script file. AMPL studio displays its value in Output console as well as in the script file.



8. To trace and see all changes made to a variable or parameter after each step, one can select the variable in the editor area and click on toolbar button  . And then

 activates the debug output windows to see the displays

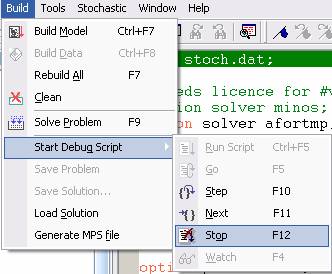

  9.  At any time to stop stepping through the script file use Start Debug Script  > Stop under build menu or the  button on the script bar.





AMPL studio processes the complete script file and displays the final results.
